 Sternal IO

 Emergency Intraosseous Injection Device.

Intraosseous infusion (IO) is the procedure of injecting directly into the marrow of a bone. We designed ergonomics based, on posture and handgrip, IO puncture & rapid drug administration device.
PerSys Medical Logo with R-01.png

Field

First Care Medical Device

Customer

Persys Medical, Israel

Year

2020

Challenge

Emergency Situation Device with Zero learning curve.

Ultra Rigid and Fail Safe Mechanism

Target Audience

Military & Civil First Caregivers.

Responsibilities

Conceptual Design

Ergonomic Study

Product Design

Mechanical & Product Engineering

Prototyping

Sternal - Flex - 20200324.29134 copy.png

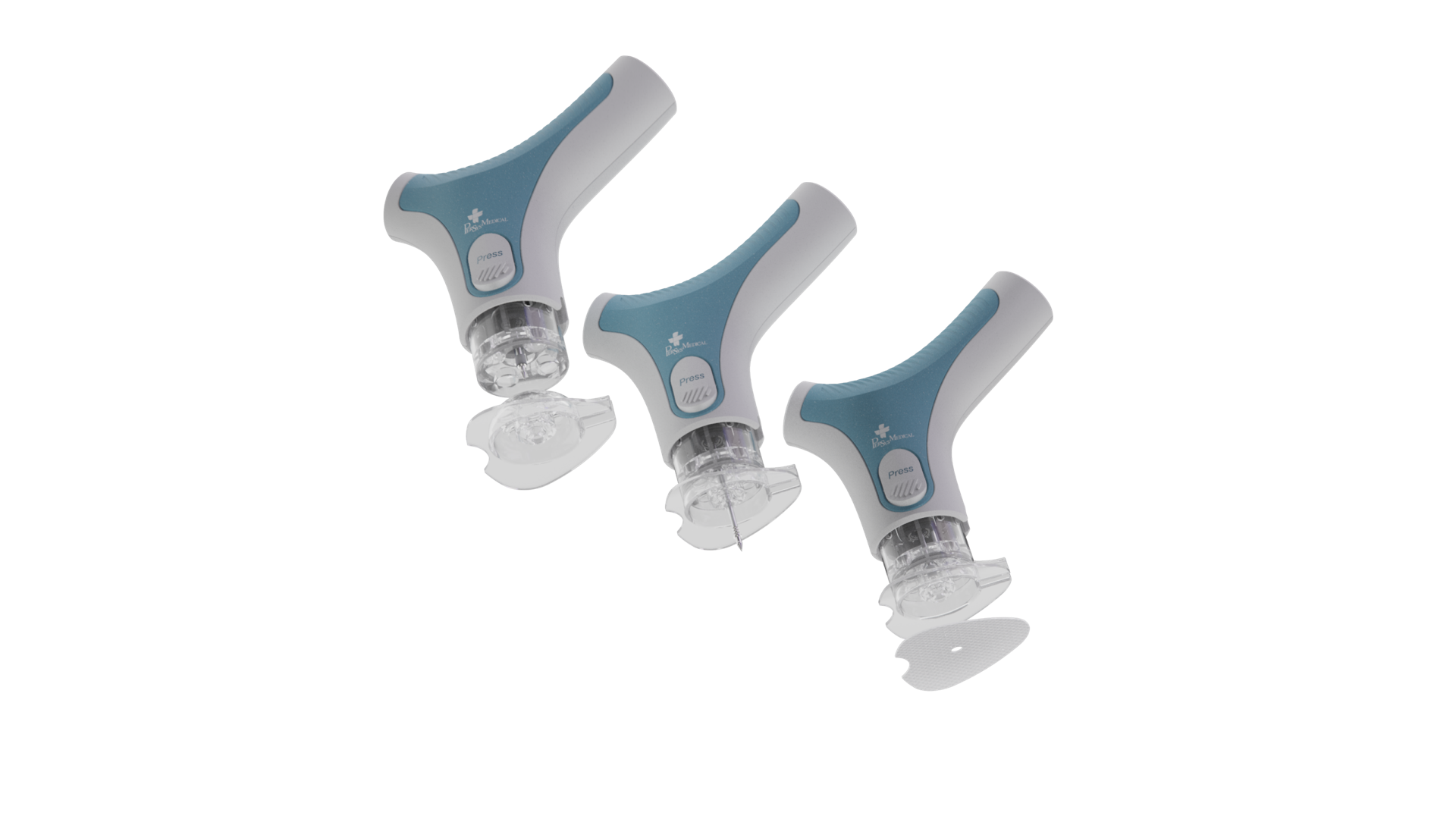

Screen Shot 2020-04-01 at 18.26.47.png

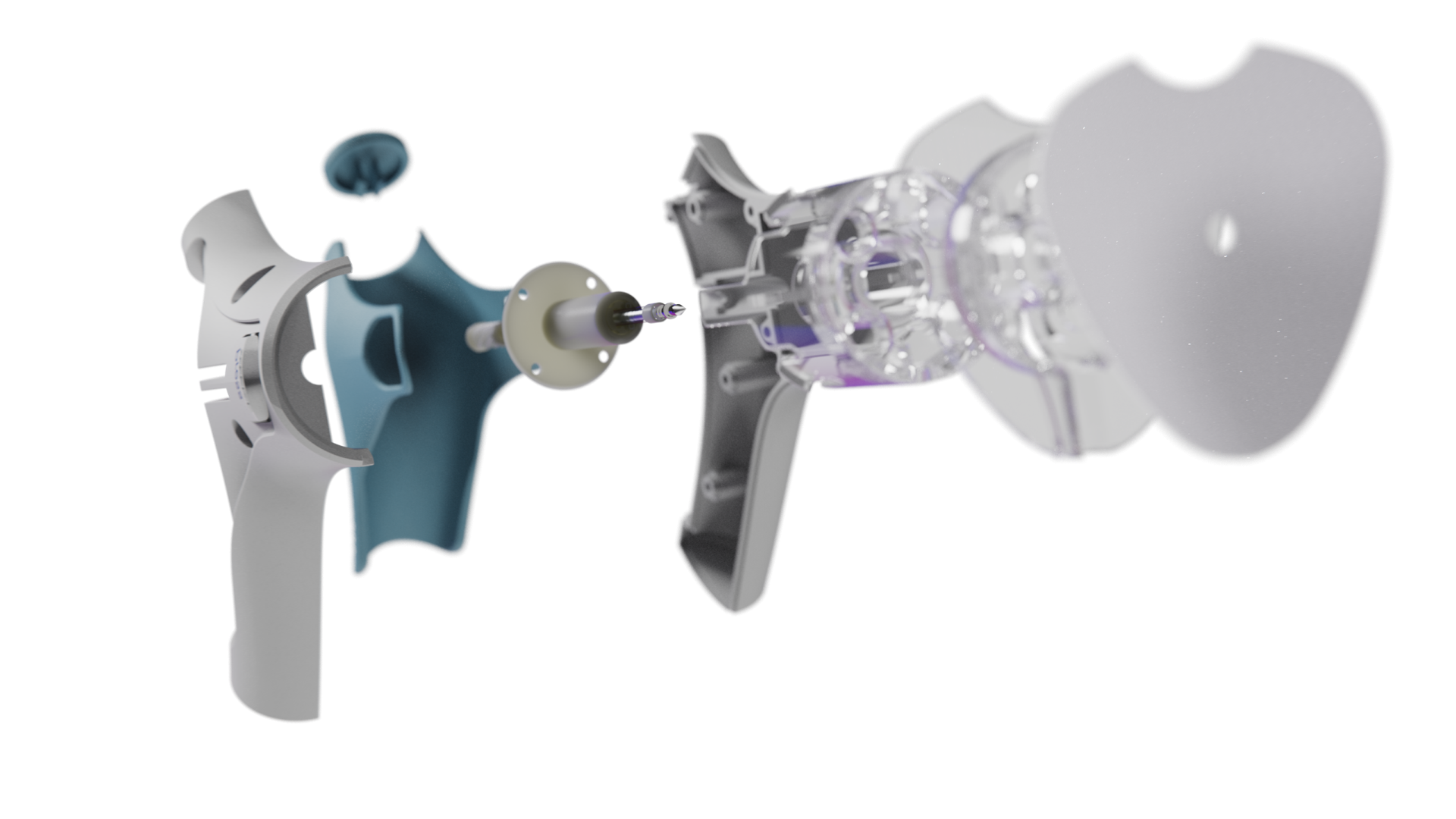

Screen Shot 2020-04-01 at 18.27.16.png

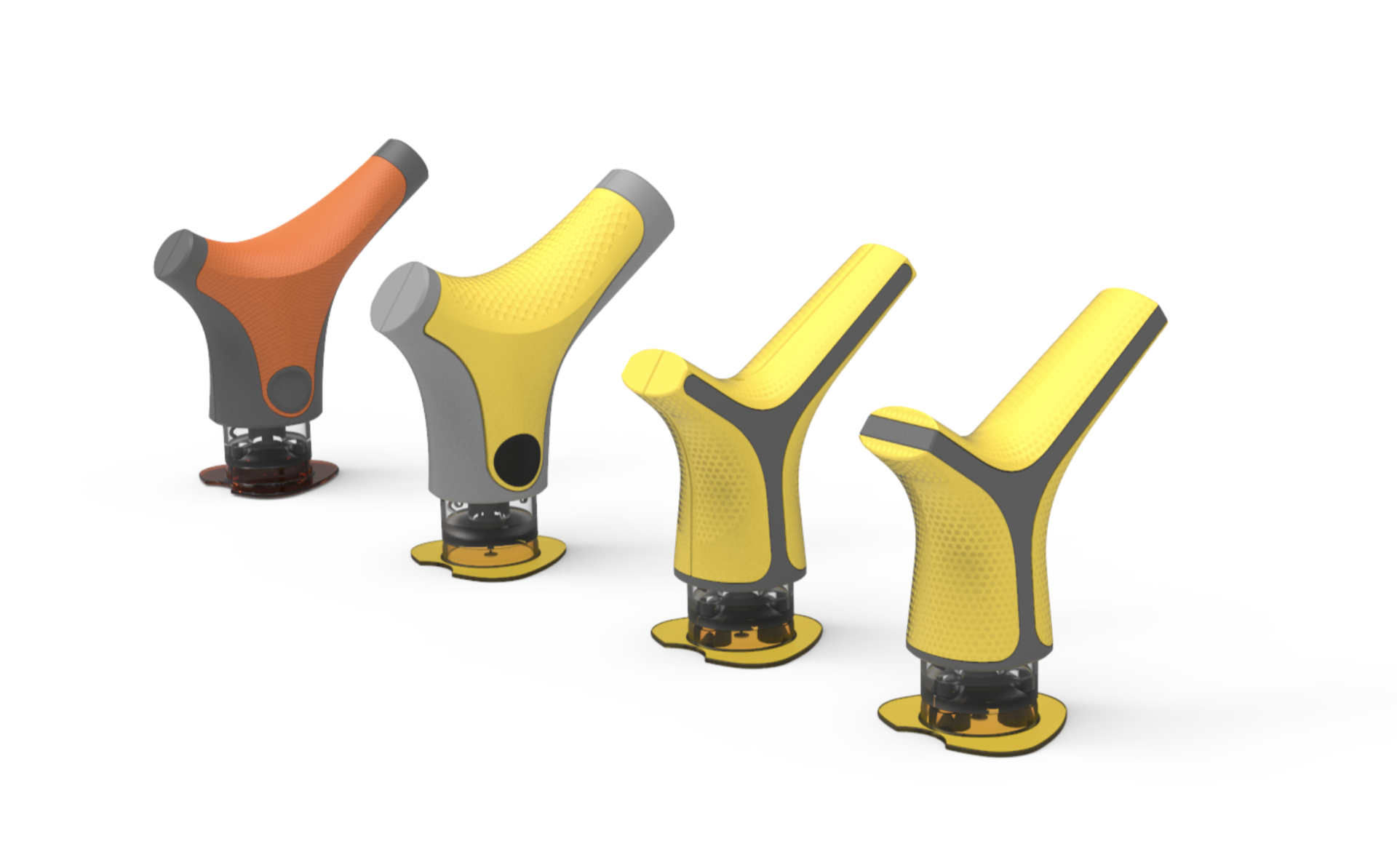

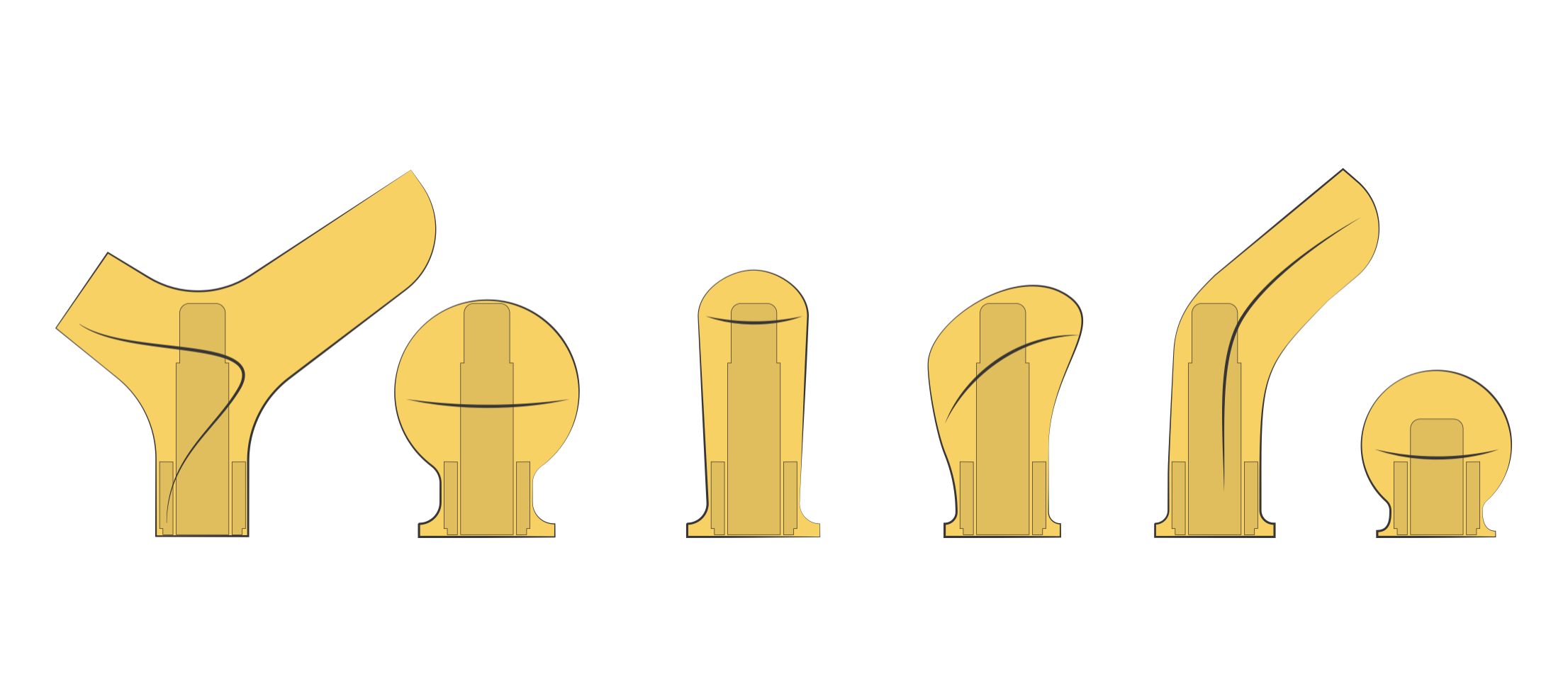

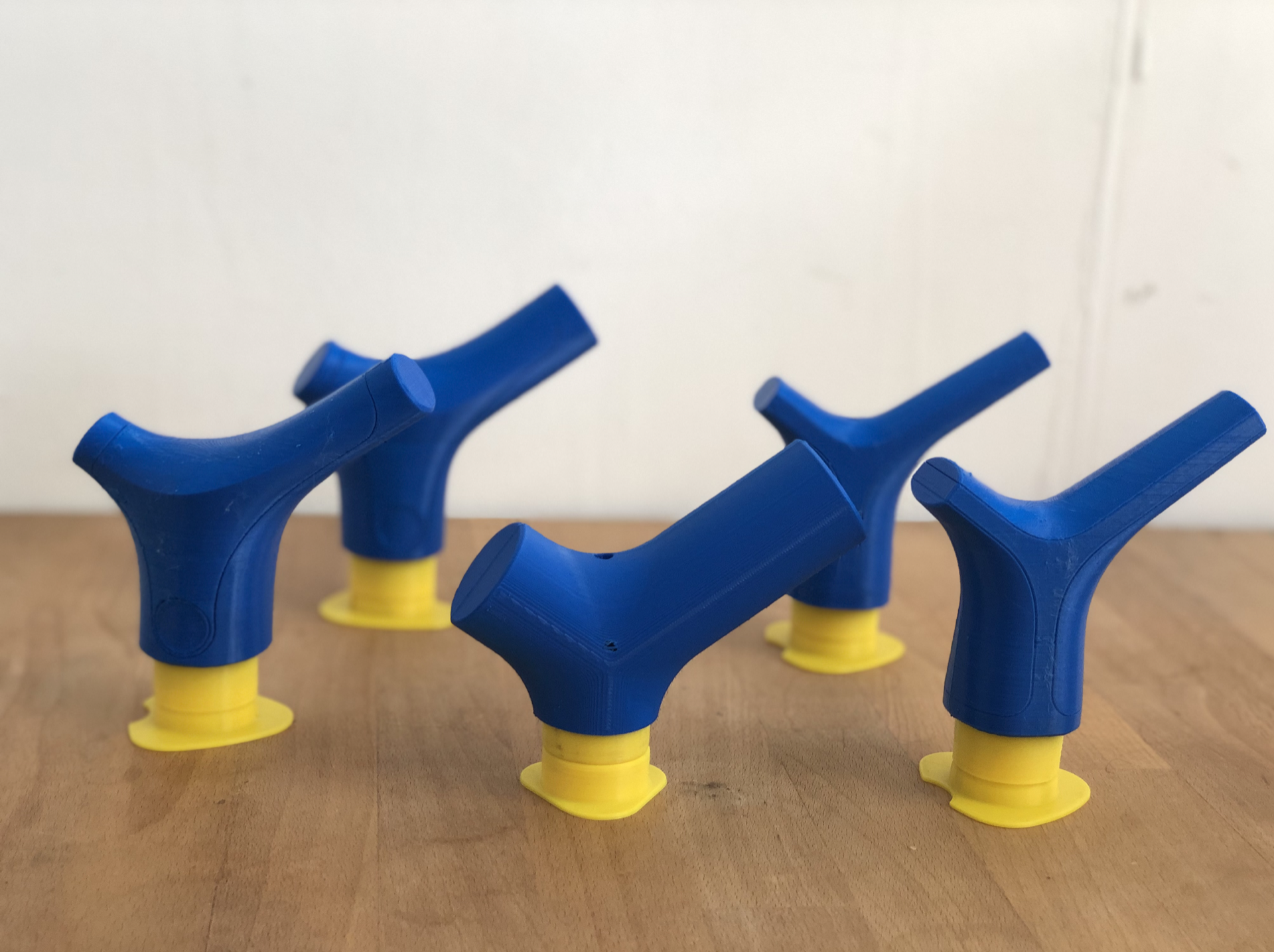

IO injection procedure requires the application of force to protrude the sternum, our human-centered design is based on ergonomic study of caregiver body posture and handgrip position to define the best configuration.
Screen Shot 2020-04-01 at 18.26.34.png
Screen Shot 2020-04-01 at 18.27.48.png

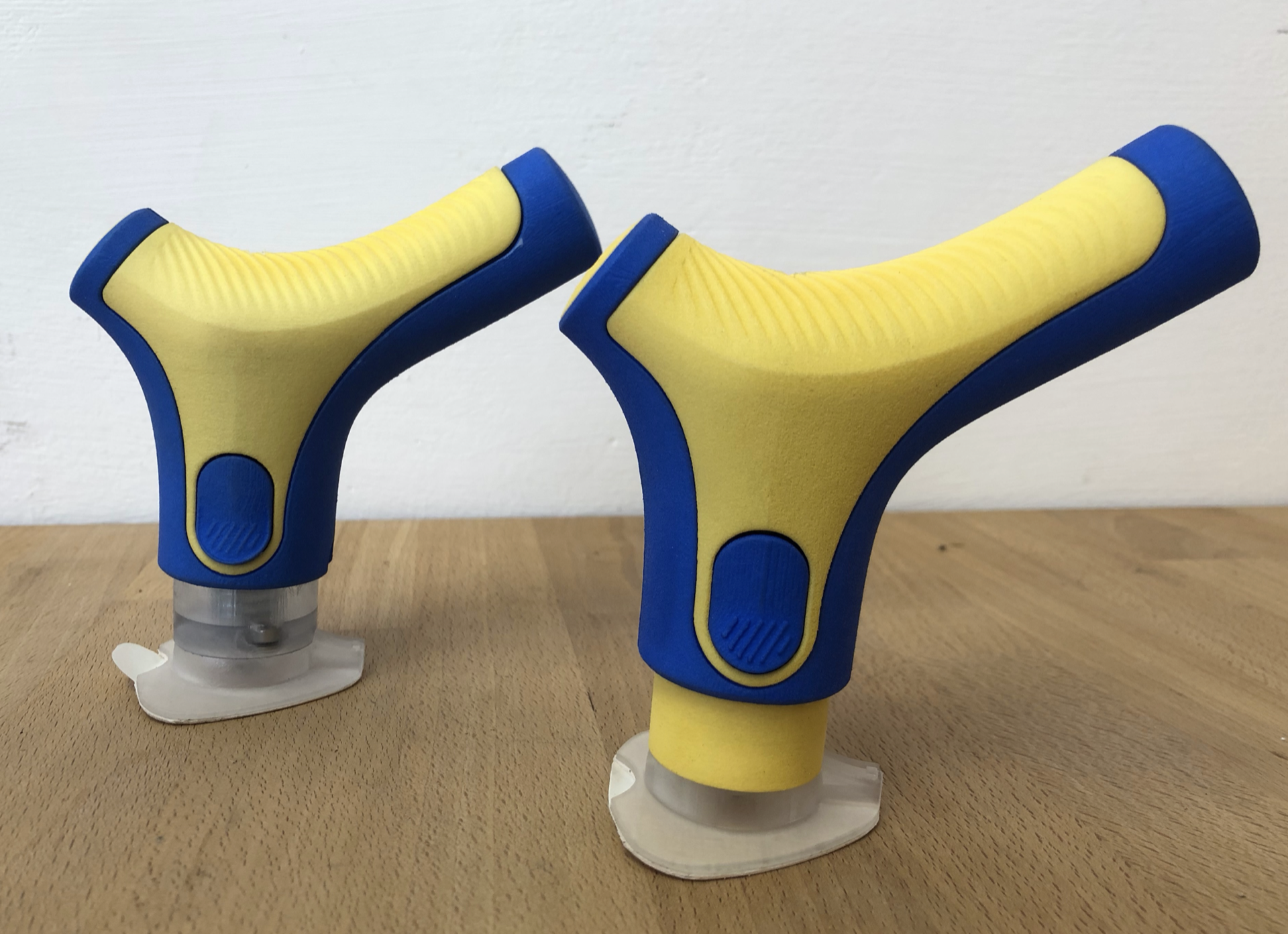

Sternal - Flex - 20200324.29158 copy.png
