 STERNAL IO

 First Aid Sternal Intro Vascular Fluid Administion.

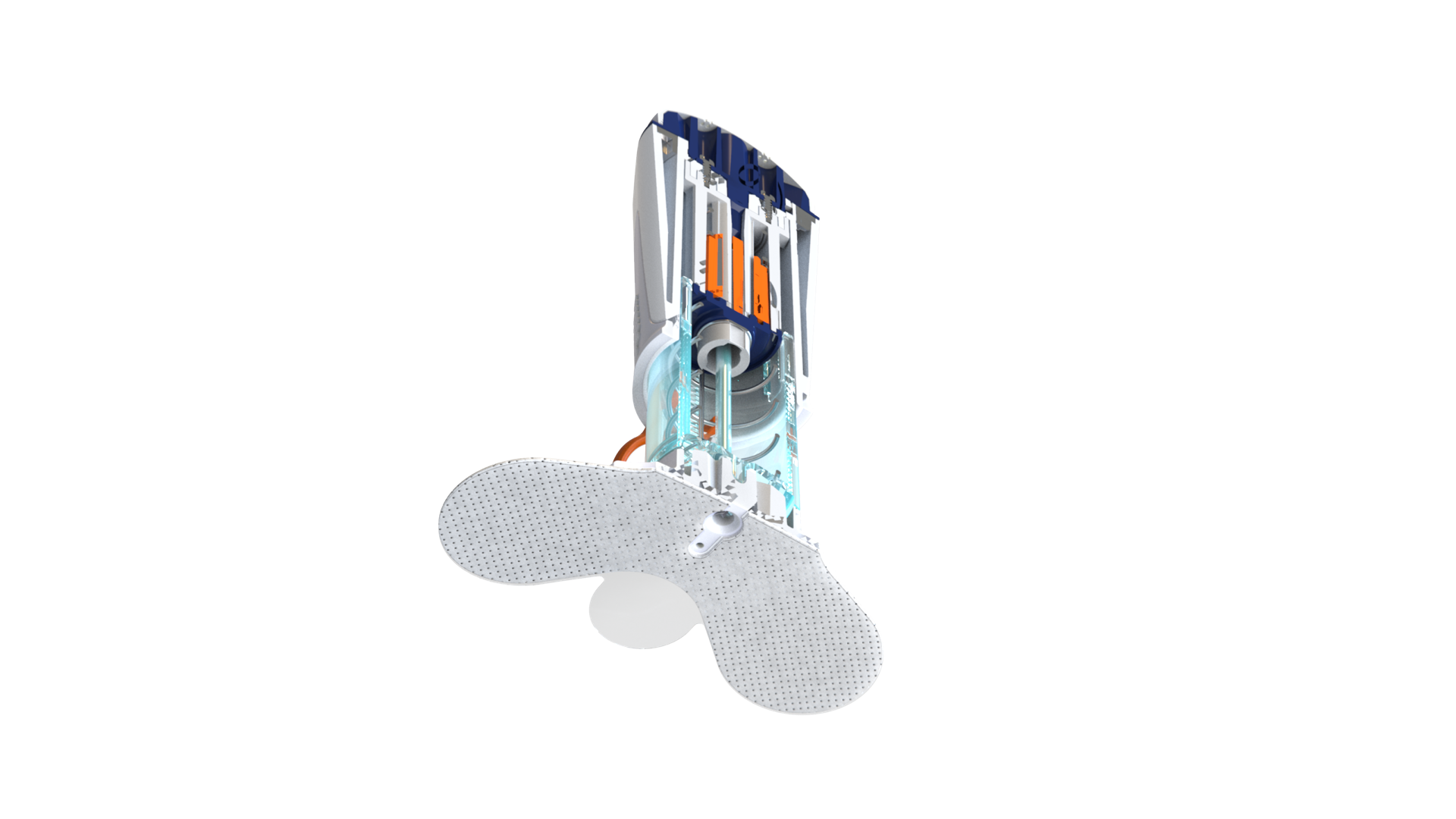

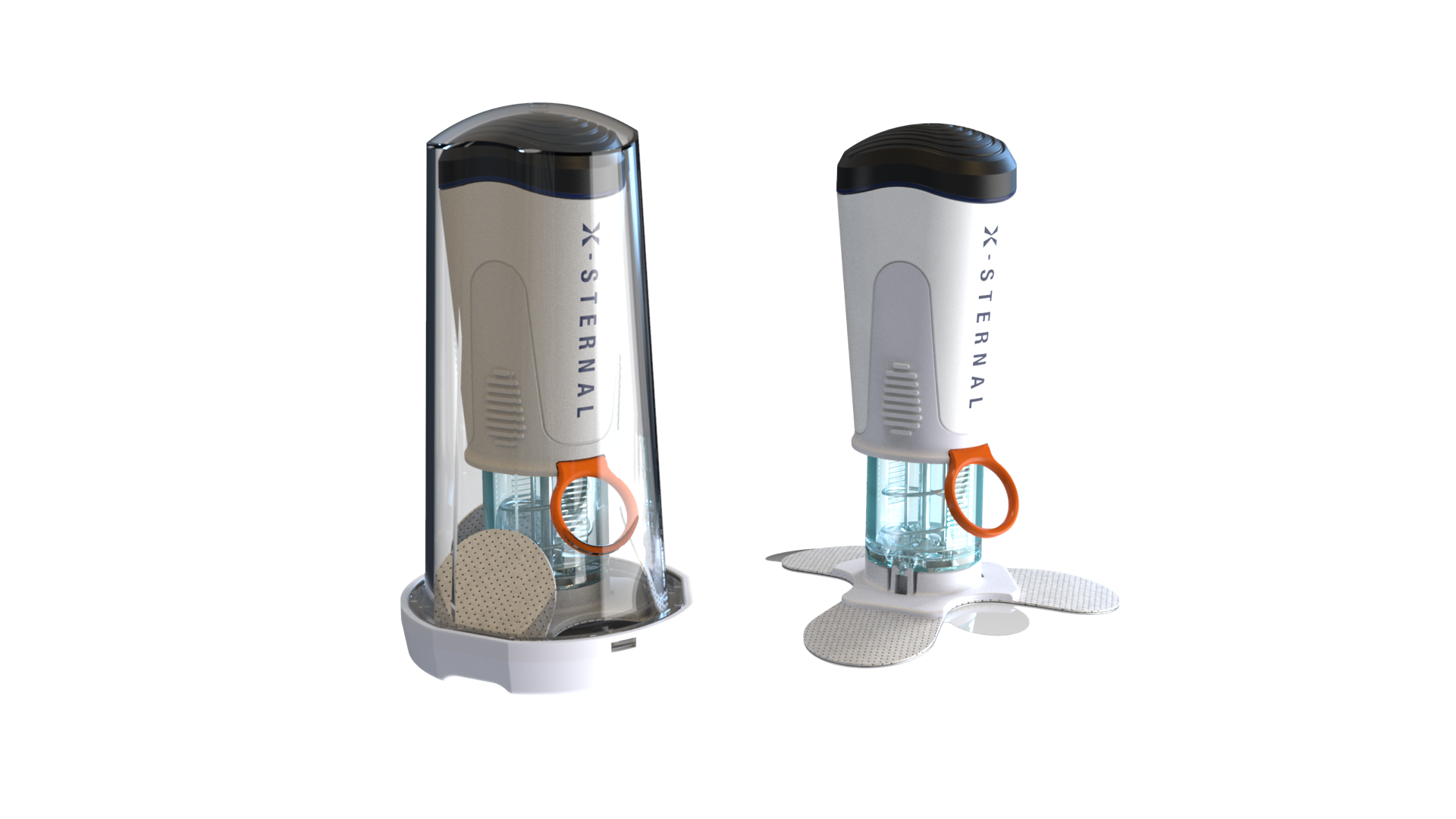

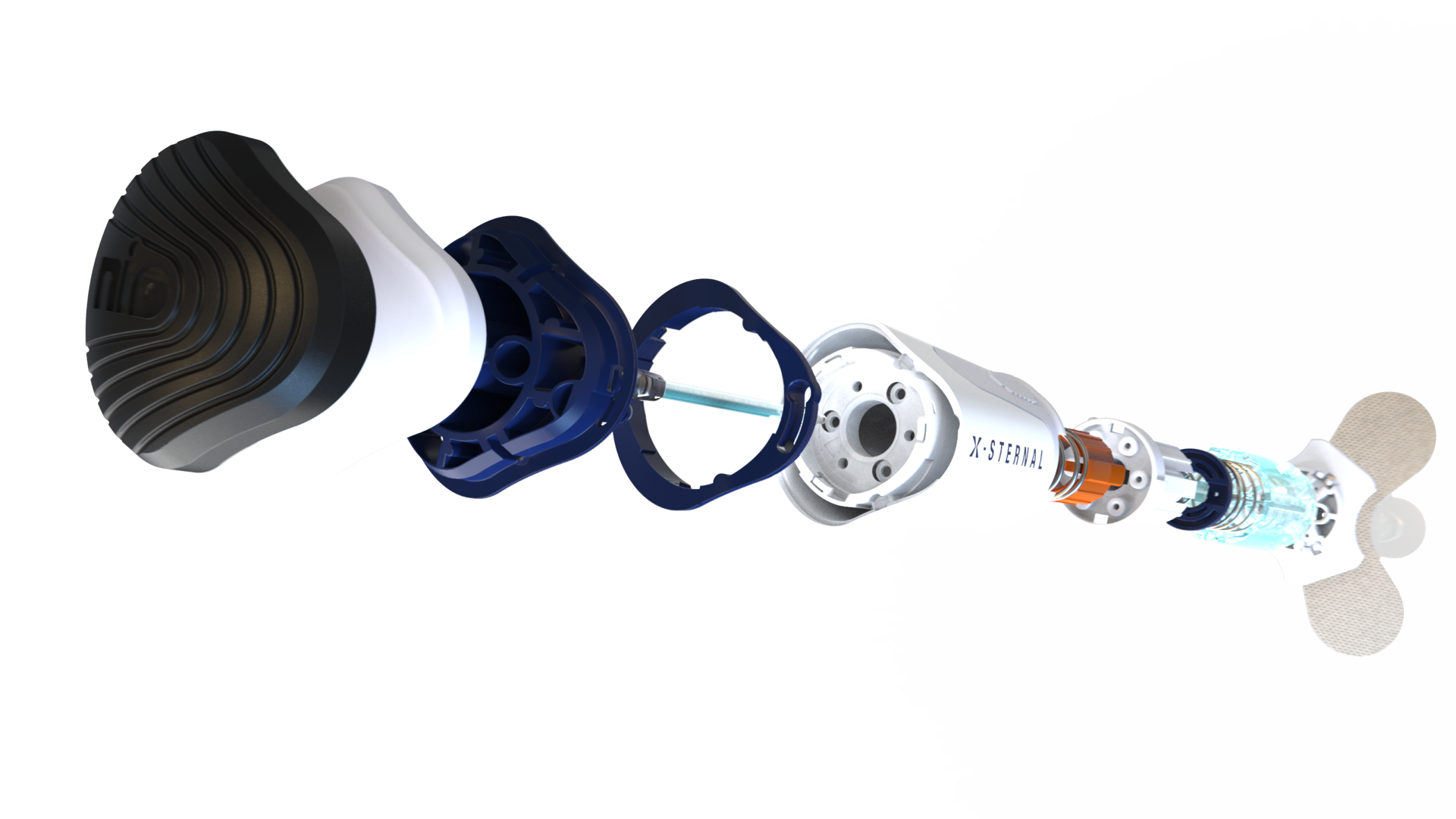

We've developed propriety, spring-loaded direct to the sternum marrow injection device. An injection mechanism, protruding the epidermis and getting through the bone's hard cortex, and opening a fluid port, in any patient physiology properties, from lightweight to clinically obese.

Field:

First Aid Medical Device

​

Customer:

Safeguard Medical, USA

​

Year:

2022

Challenge:

Design and engineer hand held semi-automatic mechanically based, user proof with zero training device.

Responsibilities:

Conceptual Design,

Industrial Design

Novel approach design

Mechanical Design & Engineering,

Manufacturing Management.

Assembly Key.3060.png
Assembly Key.3038.png
Assembly Key.3046.png
Assembly Key.3035.png

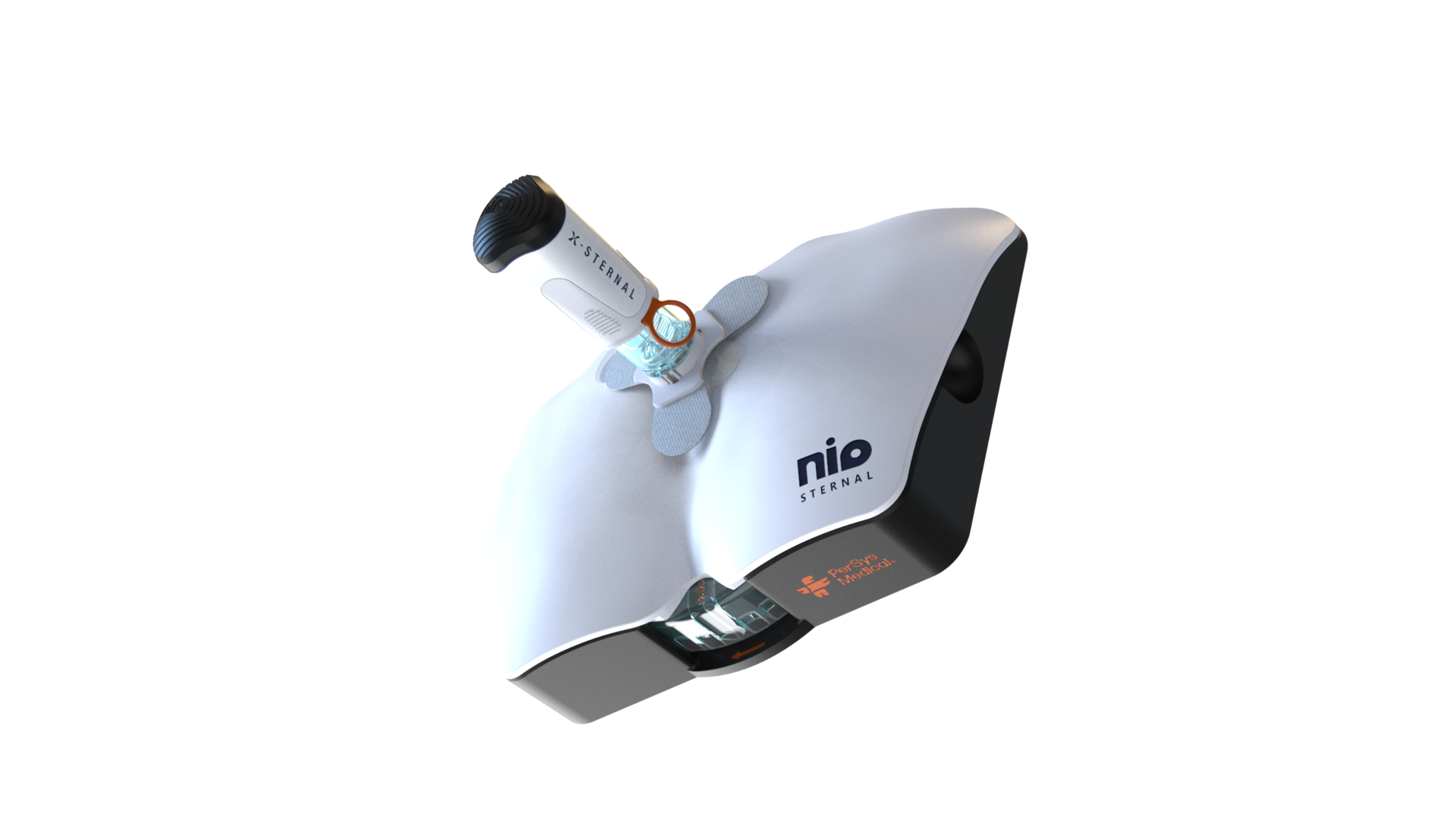

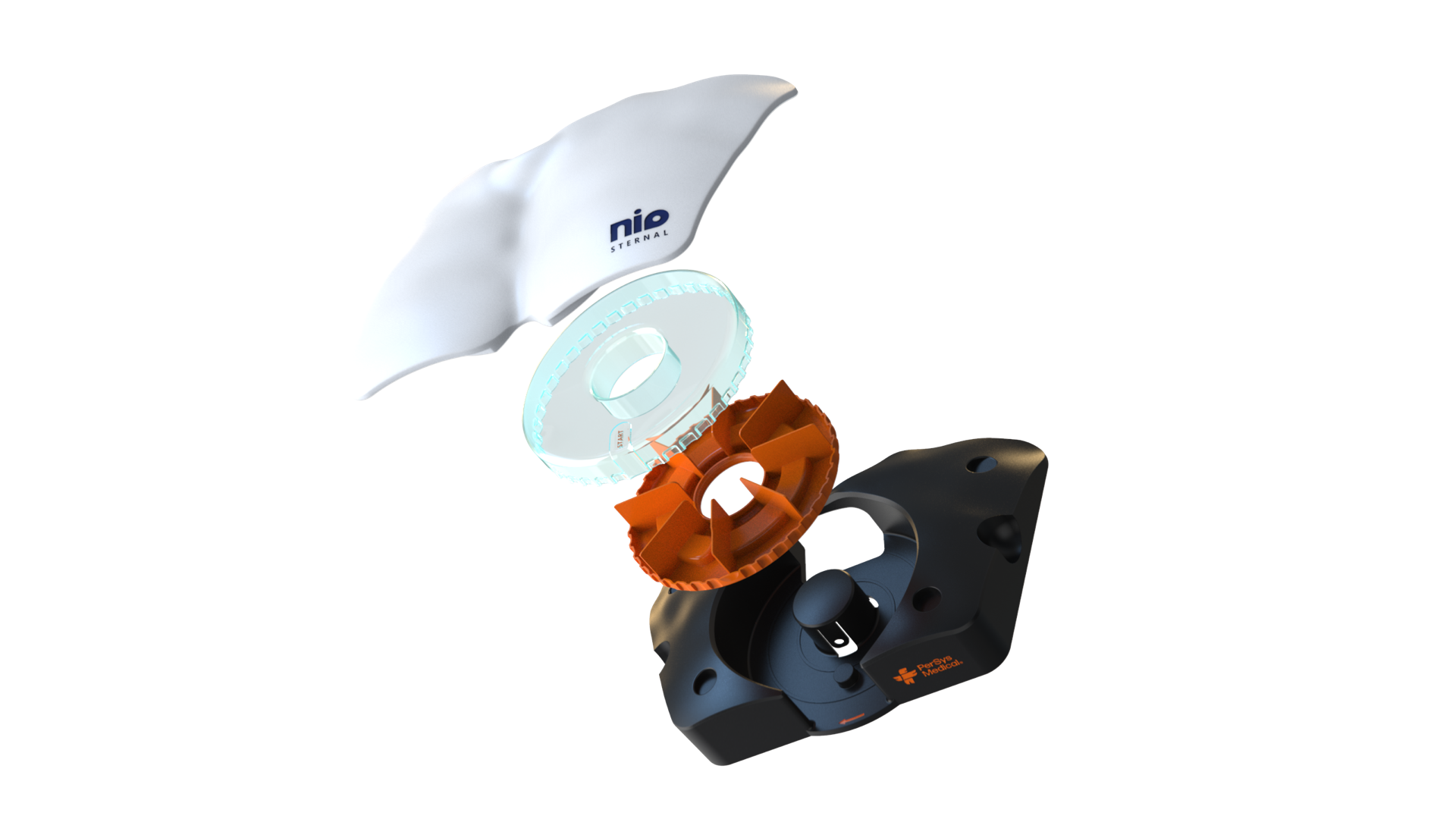

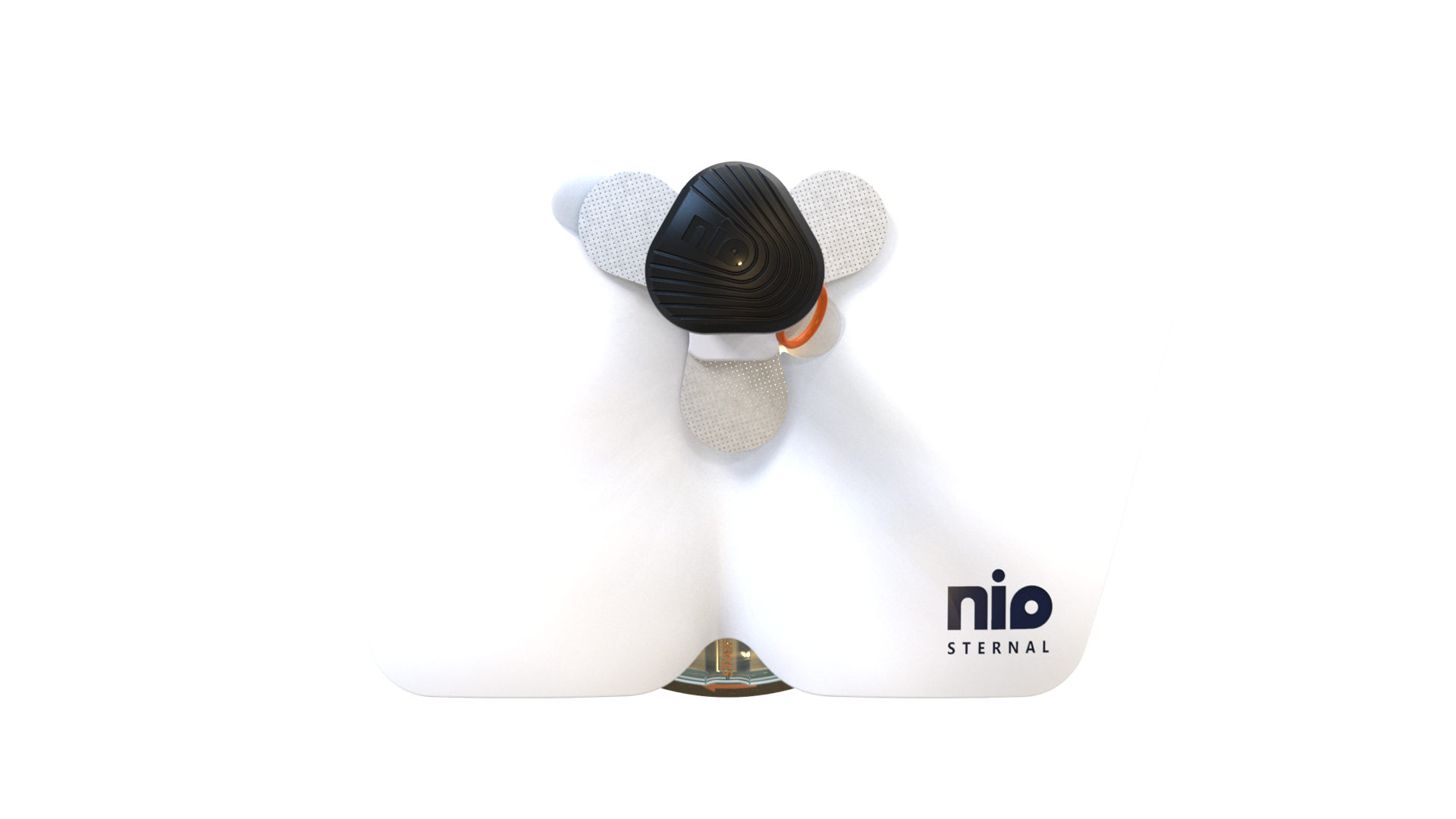

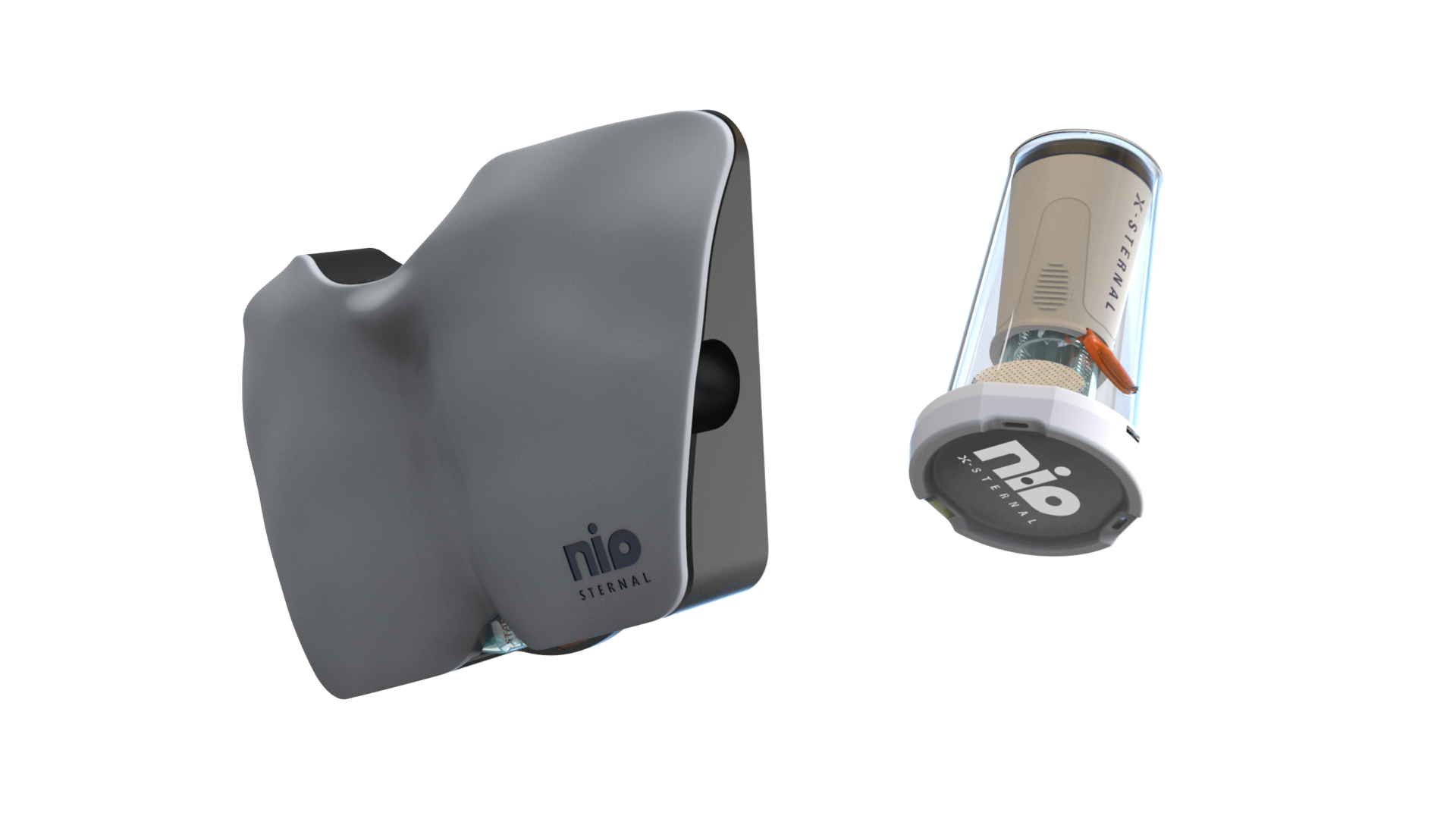

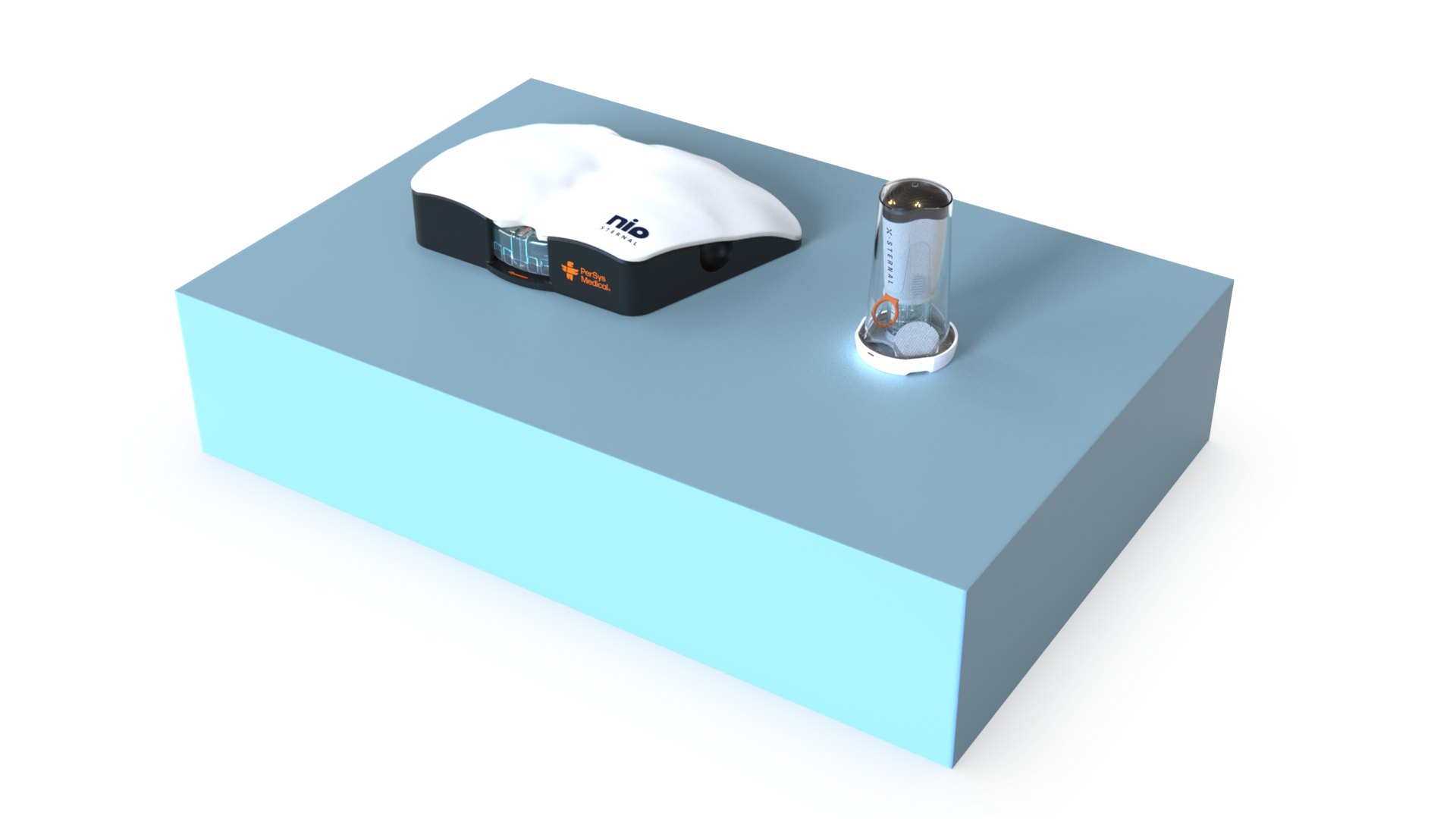

We've developed the Sternal Intraosseous Infusion Simulator as well, a training aid designed to demonstrate, simulate, and prepare all levels of health care professionals for use of the sternal intraosseous approach.
Assembly Key.3055.png
Assembly Key.3051.png
Assembly Key.3057.png
