 Tymacure

 Non-Invasive Ear Surgical Device.

Hand-operated tympanic membrane puncture treatment device,  interfaces, and form design support surgeon need for stability and clear operating sight.

Field:

Medical Product

Customer:

Tymacure, Israel

Year:

2022

Challenge:

Design of multi-interfaces ergonomic hand held surgical tool

Responsibilities:

Industrial Design

Mechanical Design

& Engineering

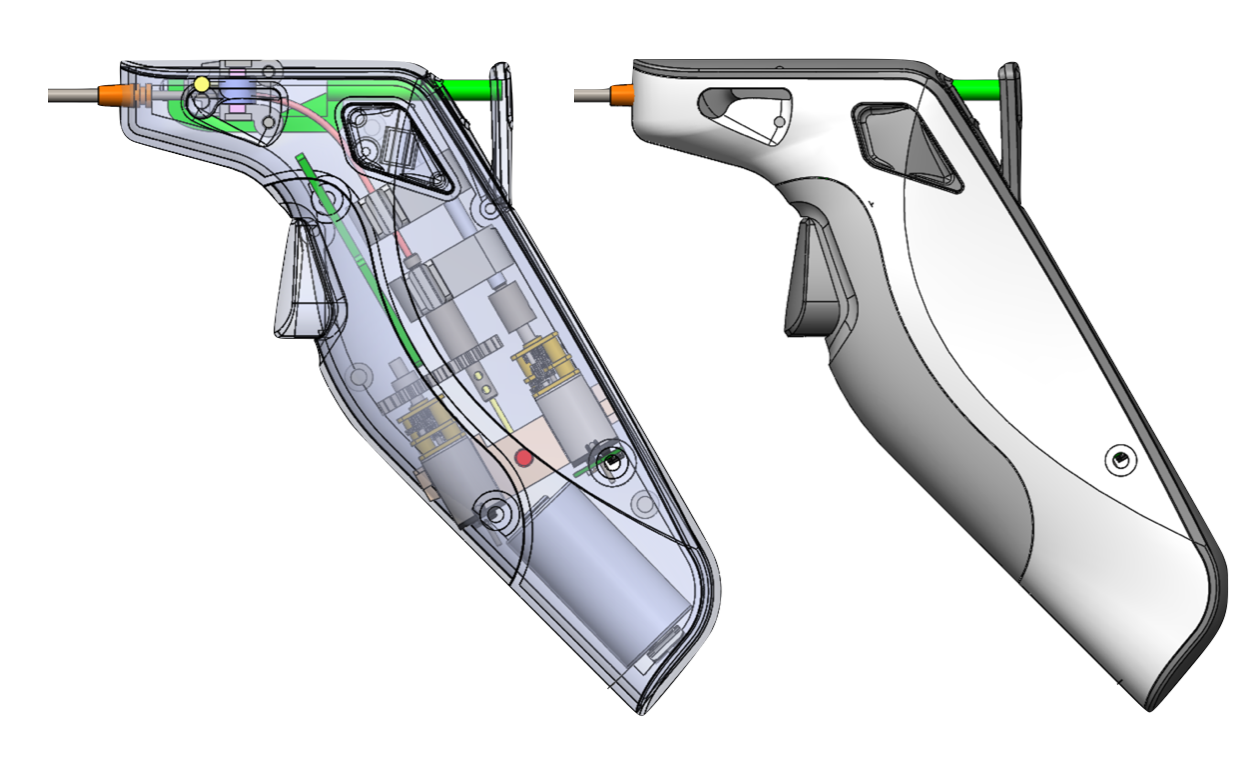

Screen Shot 2022-05-09 at 17.56.23.png

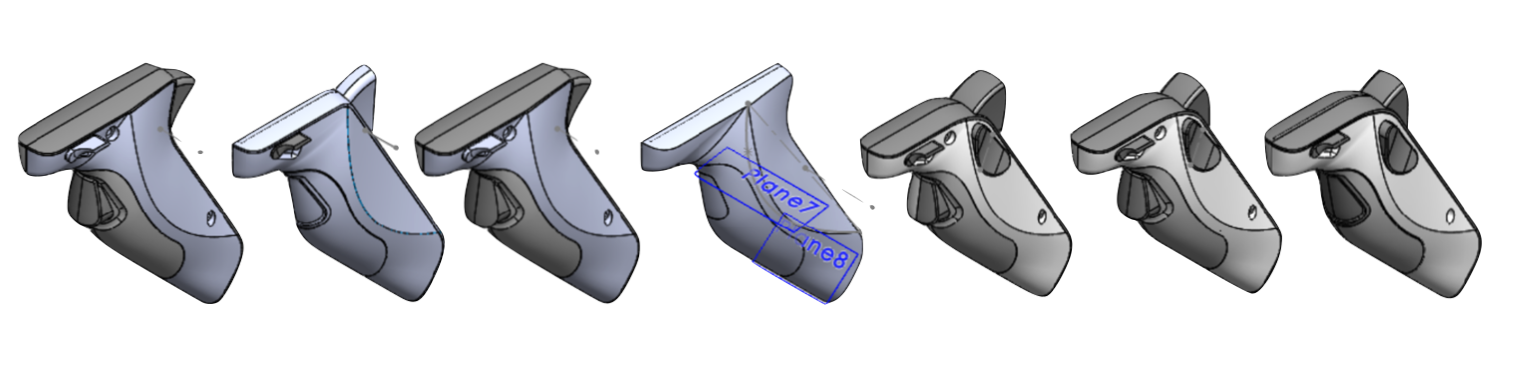

Screen Shot 2022-05-09 at 17.57.16.png

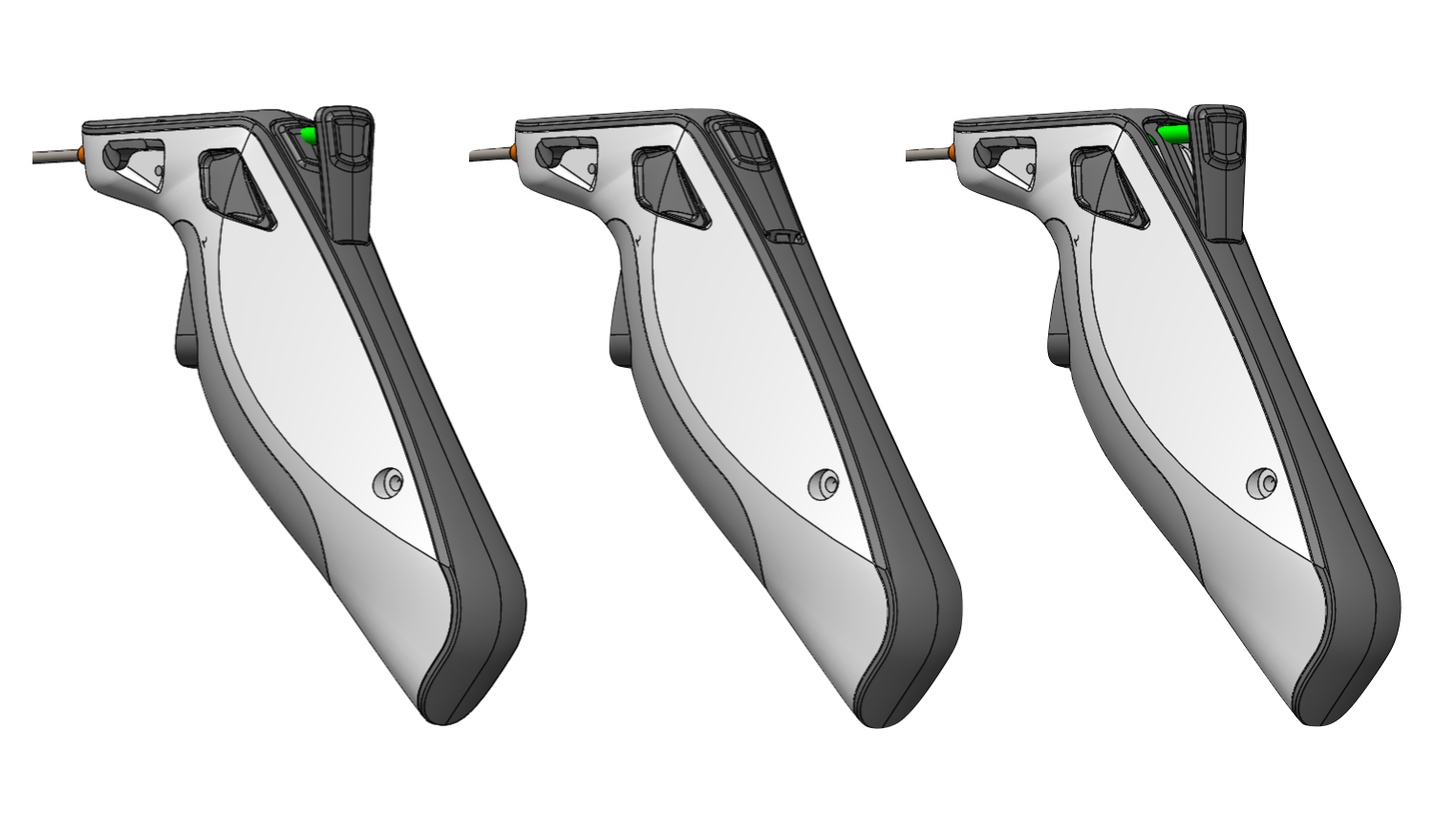

Screen Shot 2022-05-09 at 17.57.49.png

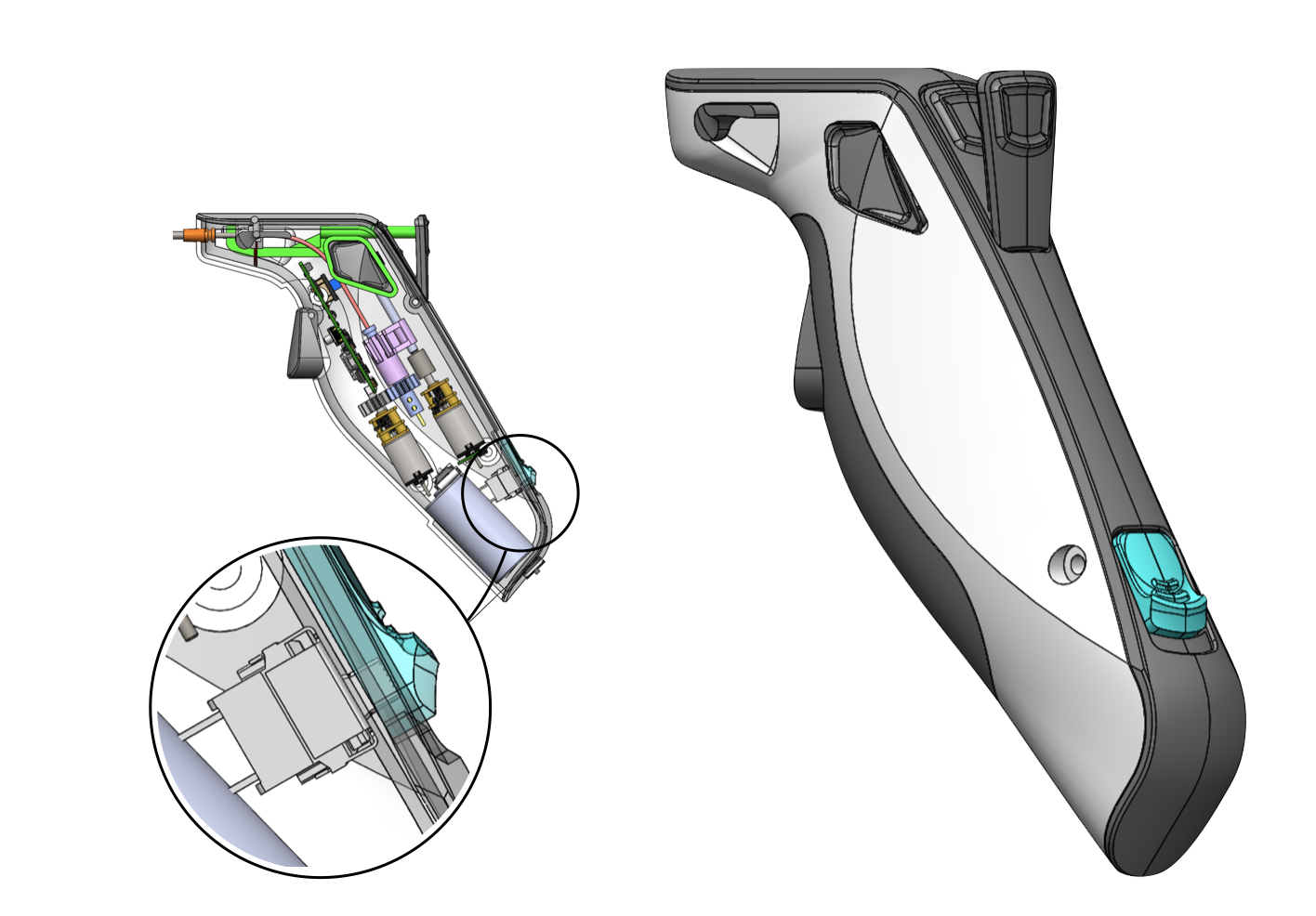

Screen Shot 2022-05-09 at 17.58.24.png

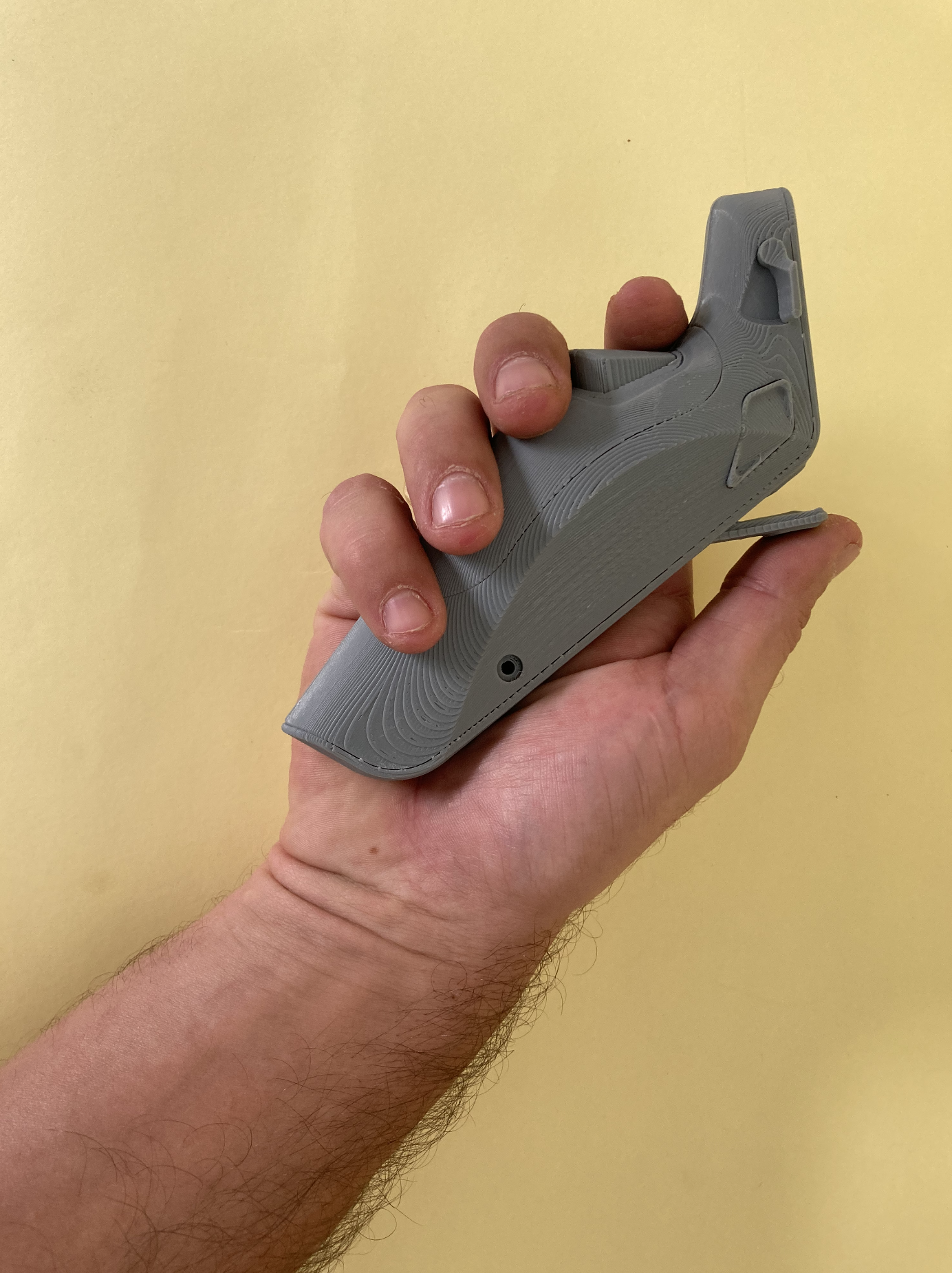

Screen Shot 2022-05-09 at 17.57.04.png
Two main contains lead the design work - 'blind' usage of the device interfaces as the ENT physician focuses on the puncture site inside the ear and keeping the device low profile to enable a clear line of sight.

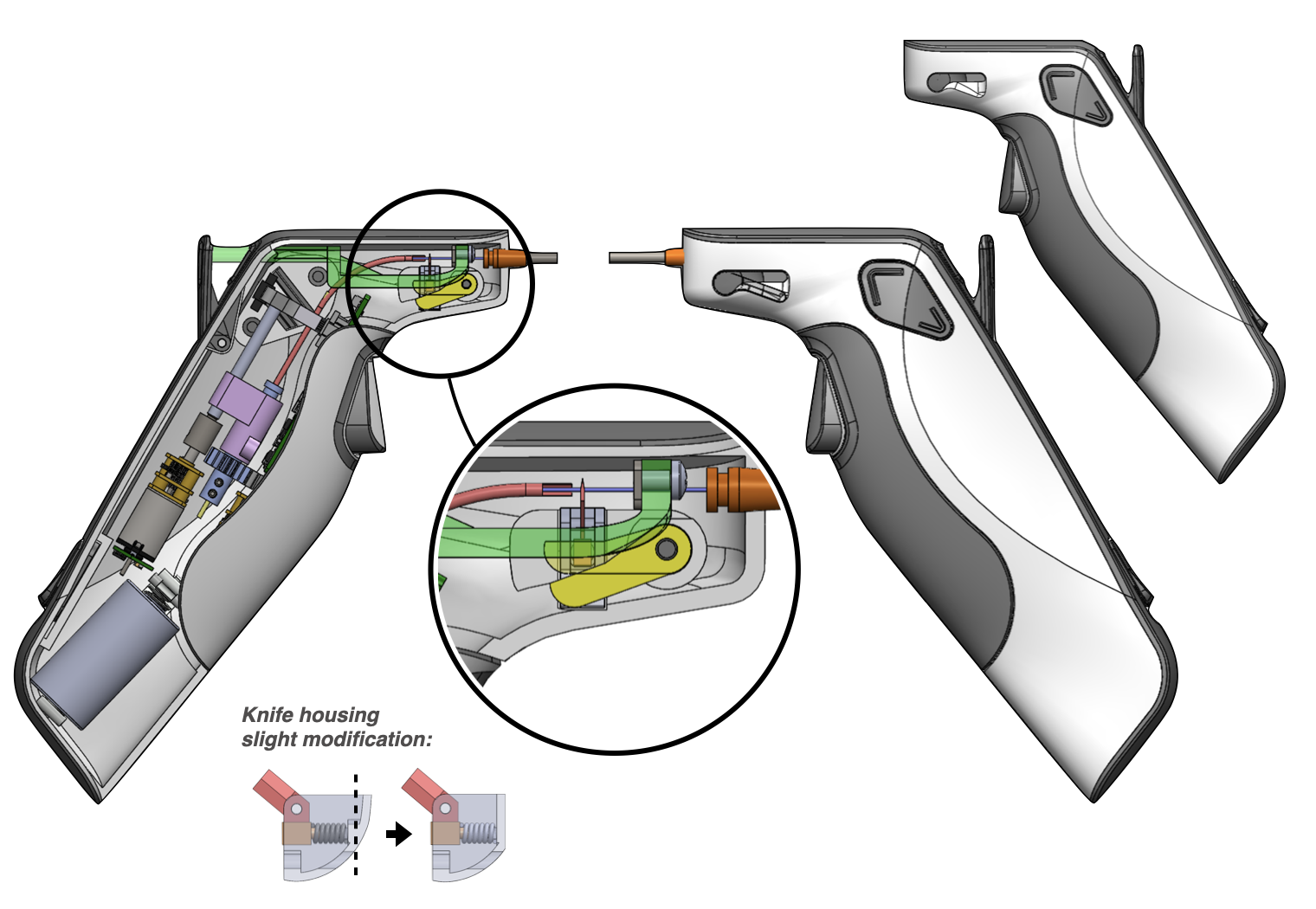

Screen Shot 2022-05-09 at 17.59.37.png
